U Channel Aluminum Glass Railing

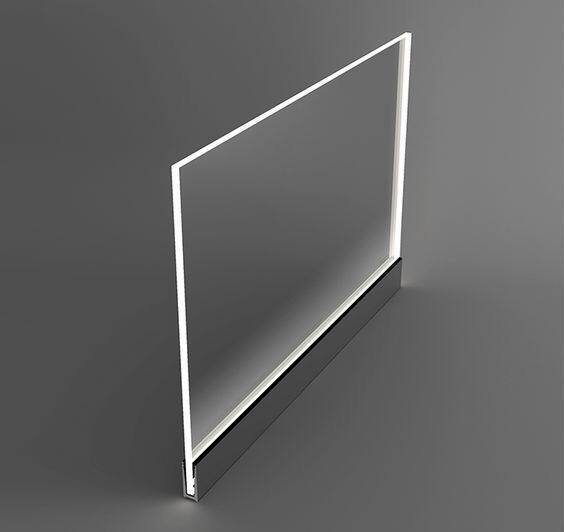

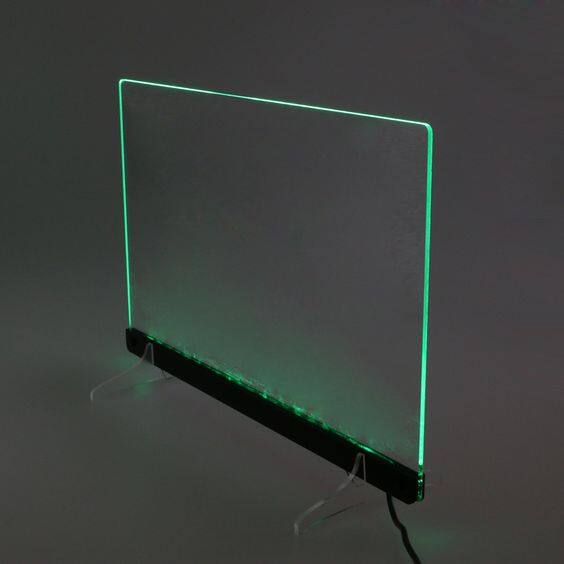

Outdoor LED light u channel aluminum glass balustrade

Beautiful led handrail light for aluminum u channel exterior glass railings systems

1. Outdoor LED light aluminum glass balustrade u channel glass railing for decks balcony
2. NO MOQ.
3. All the accessories are available.
4. All the dimensions and materials can be customized as per client's request.
5. Saving labor cost and time, high efficiently:
1)DIY, all the parts use screw to install, no need a welder.

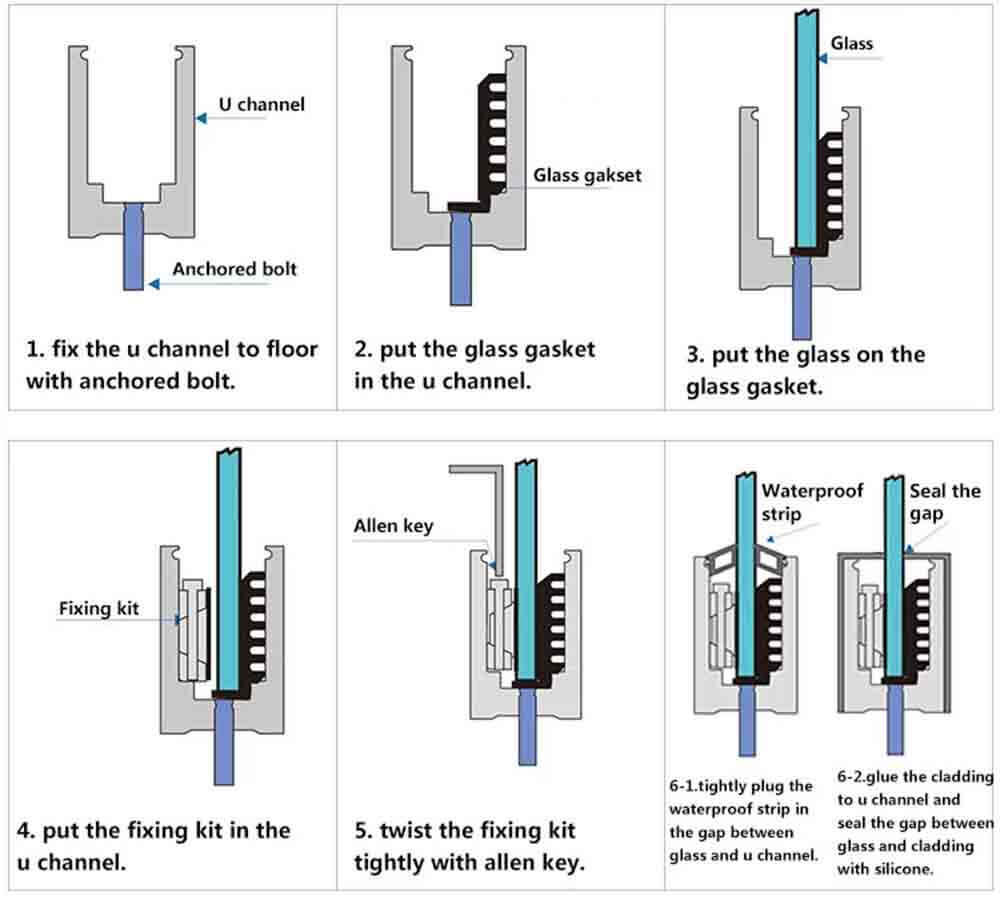

2)Offer shop drawing as per your request and dimensions, special installation instruction available.



Inquiry
Details Images





Railing System
Dimension Detail
Material
Surface Finish
Handrail
Square: 50*50/ 40*40/ 40*60 mm
Round: Dia42.4/50.8 mm
solid wood handrail / stainless steel handrail
Painting/Brushed/Mirror
Tempered Glass
10-23mm single / laminated
single tempered / laminated
Clear/Frosted/ Tinted/Super white
U based Shoe
62*102mm/70.5*102mm
/Customized
Aluminum U channel railing
Anodizing
Isolate System
72*30mm / customized
3 set per meters
/

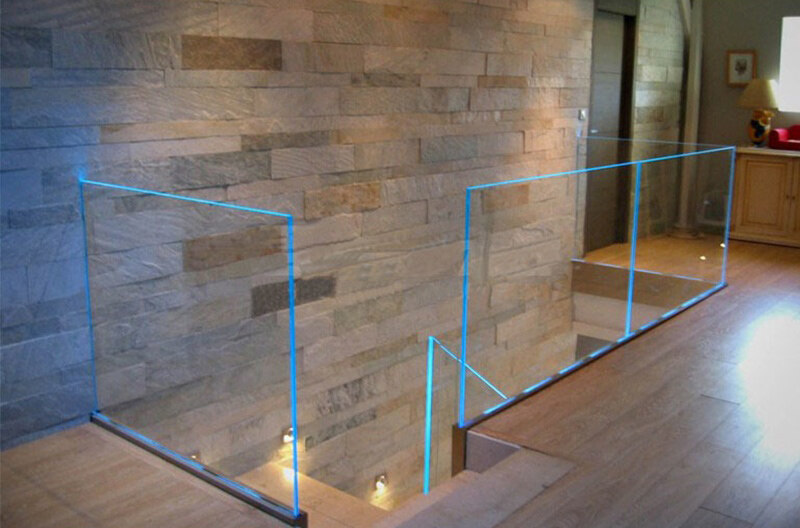

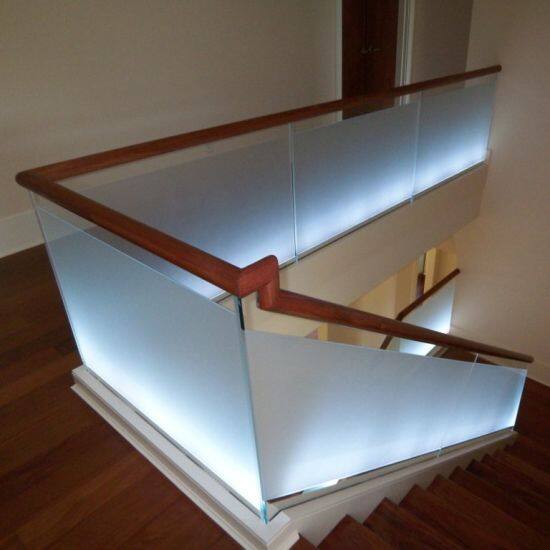

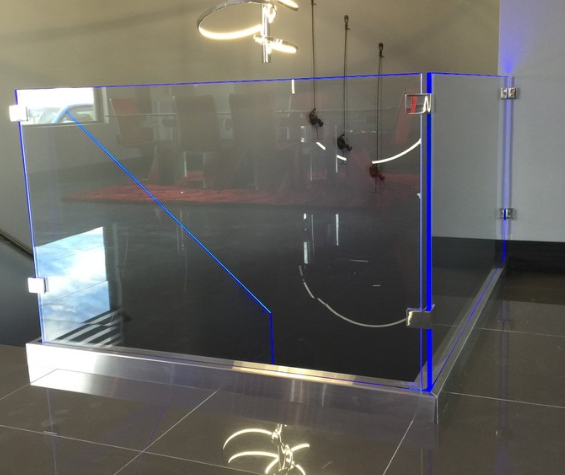

u channel glass railing

u channel glass railing

u channel glass railing

u channel glass railing

u channel glass railing

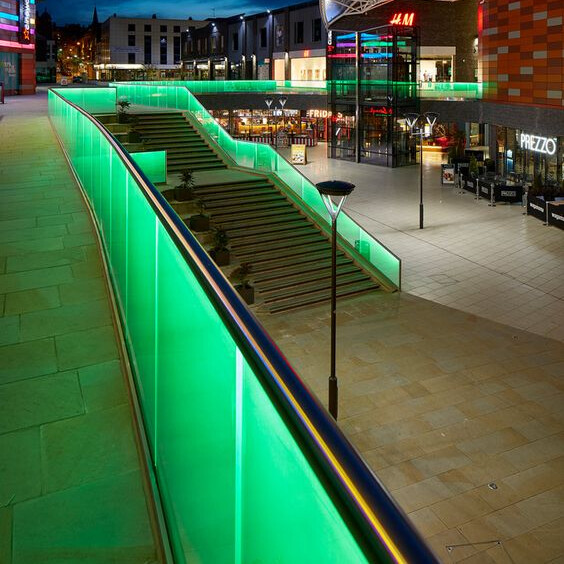

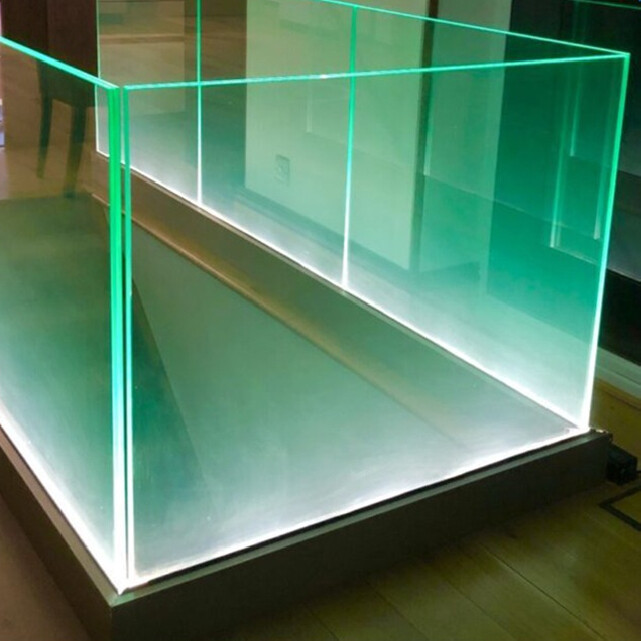

glass balustrade channel system

glass balustrade channel system

glass balustrade channel system

glass balustrade channel system

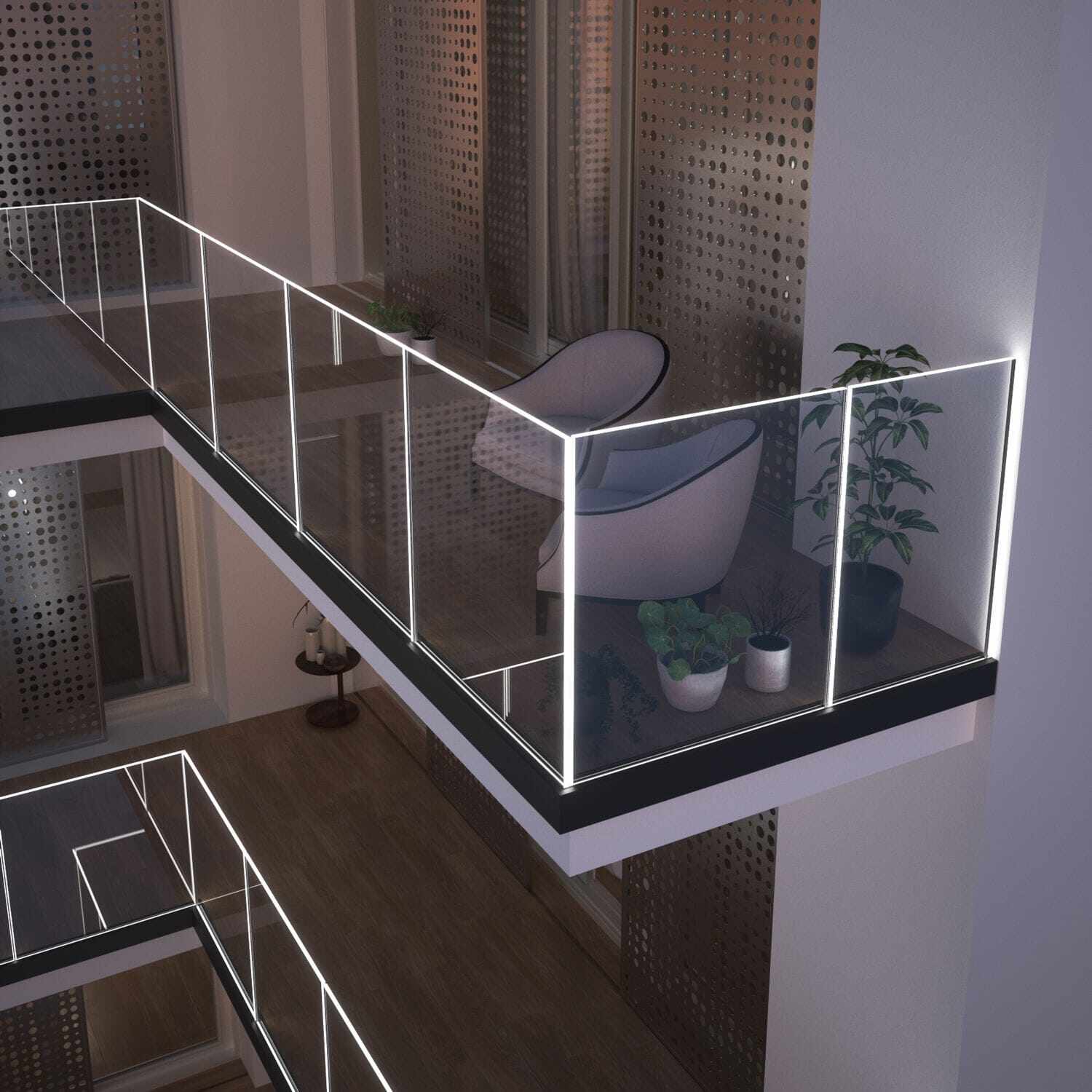

Apartment balcony LED aluminum u channel tempered glass terrace railings
Railing Part
Materials option
Surface
Dimensions


Handrail
solid wood
Nature/Painting

Circle: dia50.8mm/42.4mm/38mm
Quad:50*50mm/40*40mm/40*60mm
s.s304/s.s316
Brushed/Mirror
A3 steel
Powder Coated

U Channel
Main-body
Aluminum

customized size
Cladding cover
Stainless Steel


Glass


Tempered glass


Normally: Clear
Single glass: 10/12/15mm
Laminatedglass:5/6+1.14pvb+5/6mm/5/6+1.52+5/6mm/8/10+1.52pvb+8/10mm

Railing
Length: customized based on your job site.
Height: 850-1500 mm or customized.
