Auto Lifting Bollard

Auto Lifting Security Bollard

Automatic bollard:

This is a new designed electric-hydraulic operated retractable bollard for roadblock management.

The system can be quickly and easily operated, suitable for both security and access control applications.

The system is designed to bring convenience and enhancements to higher level security. It is an ideal choice for universities, pedestrian sidewalks, parking lots, government buildings, gyms, amusement parks, airports, shopping centers, hospitals, and occasions with high traffic flow.

Inquiry

Different thickness of steel is available (default 6 mm)

The different color is available

Customized size is available

Steady and safe due to the OMRON PLC control system

Speedy rising time and durable quality with hydraulic pressure

Lowering down the bollard by handle valve, in case of power failure or fault of the automatic system

Raising up the bollard by handle pump, in case of power failure or fault of the automatic system

Housing with durable and stainless Galvanization

Optimization of the frame structure, high anti-impact capability, high loading capability

High security and anti-collision ability

With a reflective band and a low energy consumption LED light at night



Parameters:



Product name: Electric automatic bollard

Control system:electric-hydraulic operated

Maximum weight of passing cars:≤8 T

Power supply:220 V (control voltage: 24V)

System power:1.5kW / 2.2kW

Rising time:≤4 s (adjustable)

Dropping time:≤2 s (adjustable)

Working temperature:-35°C ~75°C

Material:#304 stainless steel

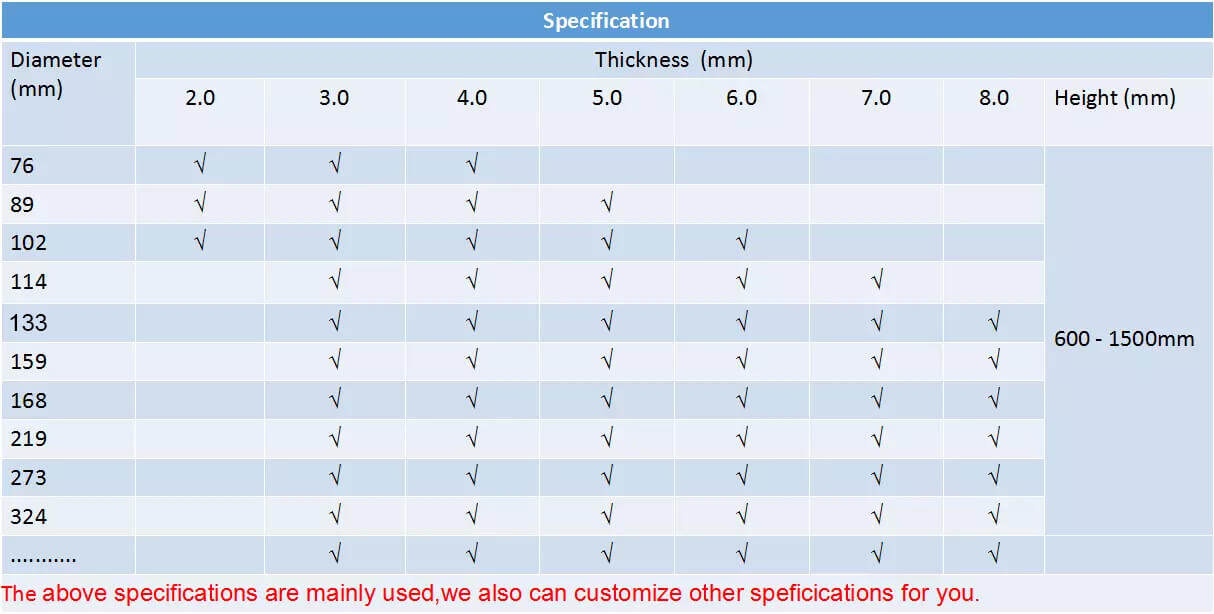

The diameter of the pillar:219mm (168mm, 275mm, 324mm are also available)

The thickness of housing:6mm(8mm, 10 mm are also available)
