SS Baluster Glass Railing

Outdoor Glass Balustrade Systems: Side Mount Stainless Steel Glass Balustrade

Side mounted design baluster stainless steel deck balustrade terrace glass railing post stair handrail for balcony

Inquiry

What is Glass Balustrade?

A glass balustrade provides a safety barrier commonly used on staircases, balconies, and pool fencing. Three types of glass balustrade are available: fully framed, semi-frameless, and fully frameless. you could choose one of them accordingly to match your design. You also could order diy frameless glass balustrade for your project.



Outdoor Glass Balustrade Systems specifications:



1. Height:

850-1200mm (the specific height can be manufactured according to the actual needs of customers)

Railing height (generally between 900mm-1200mm, specific specifications can be set according to usage)

Height of domestic indoor railing: 900mm-1000mm

Height of domestic outdoor railing: 1000mm-1100mm

Height of foreign indoor railing: 1000mm-1100mm

Height of foreign outdoor railing: 1100mm-1200mm

Available configurations:







2. Handrail:

PVC, solid wood, acrylic, stainless steel shaped pipe, stainless steel pipe (round pipe, square pipe, flat pipe...)
The shape and size of the armrest can be customized according to the actual needs of customers...
Such as: round tube: φ31.8mm, φ38.1mm, φ42.4mm, φ50.8mm, φ63.5mm...
Square tube: 30x30mm, 38x38mm, 40x40mm, 50x50mm, 60x60mm...
Oval tube: 40x80mm, 30x60mm...
Thickness: 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.3mm, 2.5mm. ...
Steel plate: width 40mm, 50mm, 60mm, 70mm, 100mm...
Steel plate thickness: 4mm, 6mm, 8mm, 10mm, 12mm, 16mm, 20mm...
Wood: round: 40mm, 50mm, 60mm, 70mm, horseshoe shape: 50x70mm... can be customized according to customer design requirements







3. Post:

Acrylic column, steel-wood column, stainless steel column (round tube, square tube, flat tube, single steel plate, double steel plate...), carbon steel column, aluminum column
The shape and size of the column can be customized according to the actual needs of customers...
(For example: round tube: φ31.8mm, φ38.1mm, φ42.4mm, φ50.8mm, φ63.5mm...
Square tube: 30x30mm, 38x38mm, 40x40mm, 50x50mm, 60x60mm...
Thickness: 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.3mm, 2.5mm)
Steel plate: width 40mm, 50mm, 60mm, 70mm, 100mm...
Steel plate thickness: 4mm, 6mm, 8mm, 10mm, 12mm, 16mm, 20mm...
Optional wood: beech, rubber wood, ash, eucalyptus, poplar, walnut tree, yellow pineapple, oak, camphor, birch, birch, fir, catalpa, camphor, walnut, elm... .







4. Infill Panel:

(1) Tempered glass: thickness: 4mm, 5mm, 6mm, 8mm, 10mm, 12mm...
(2) The thickness of flat toughened glass is 4, 5, 6, 8, 10, 12, 15, 19mm...;
(3) The thickness of curved tempered glass is 5, 6, 8mm...
(4) Laminated glass: thickness: total glass thickness 4--50mm; PVB film thickness: 0.38---2.28 mm
(5) Surface technology: transparent, gray, blue, coating...
(6) solid rod: Φ12mm, Φ10mm, Φ8mm...hollow tube: 13x25mm, 10x20mm, 15x30mm...







5. Surface Finished:

Sparkling silver/champagne silver/sand black/nickel-plated/baked varnish/mirror/finish/sand polish/matt/brushed/chrome-plated/galvanized/baked varnish/sprayed....



6. Applications :

This indoor glass balustrade is widely used in various banks, stations, hospitals, post offices, theaters, airports, airports, subways, shopping malls and supermarkets, exhibition centers, hotels, clubs, clubs, commercial buildings, real estate development companies, decoration companies, construction projects, modern large hotels, Restaurants, stadiums, office buildings, private villas, railings...

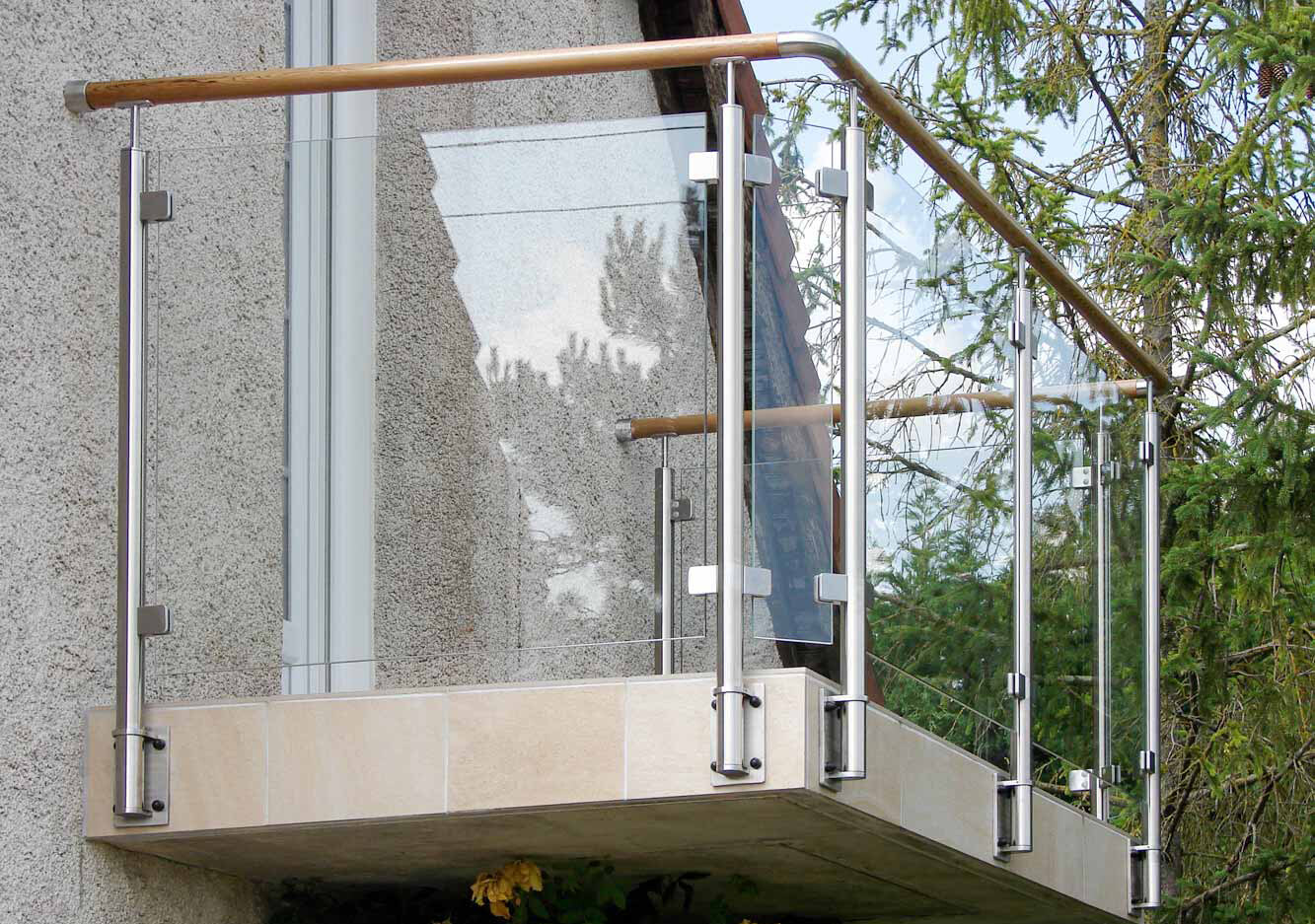

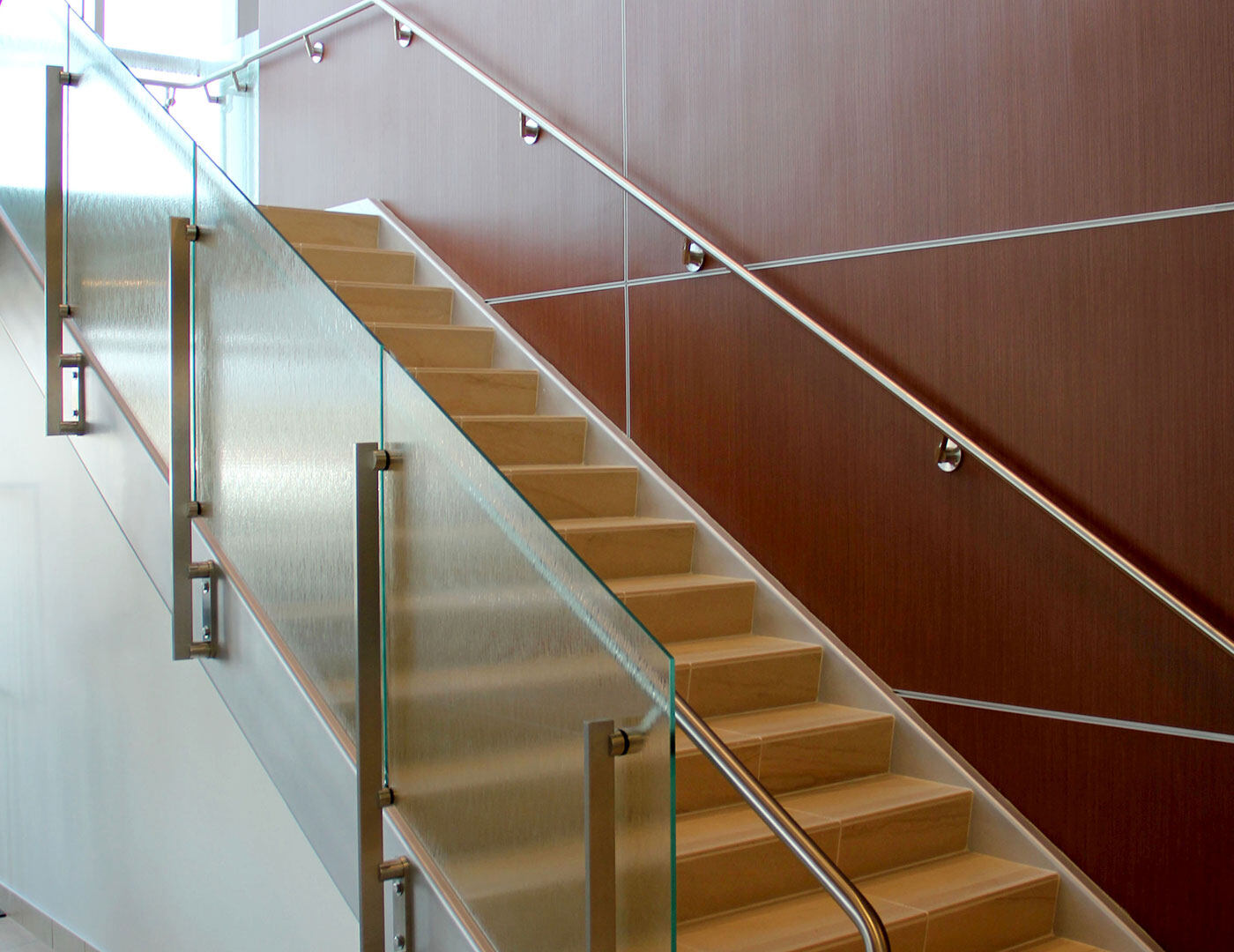

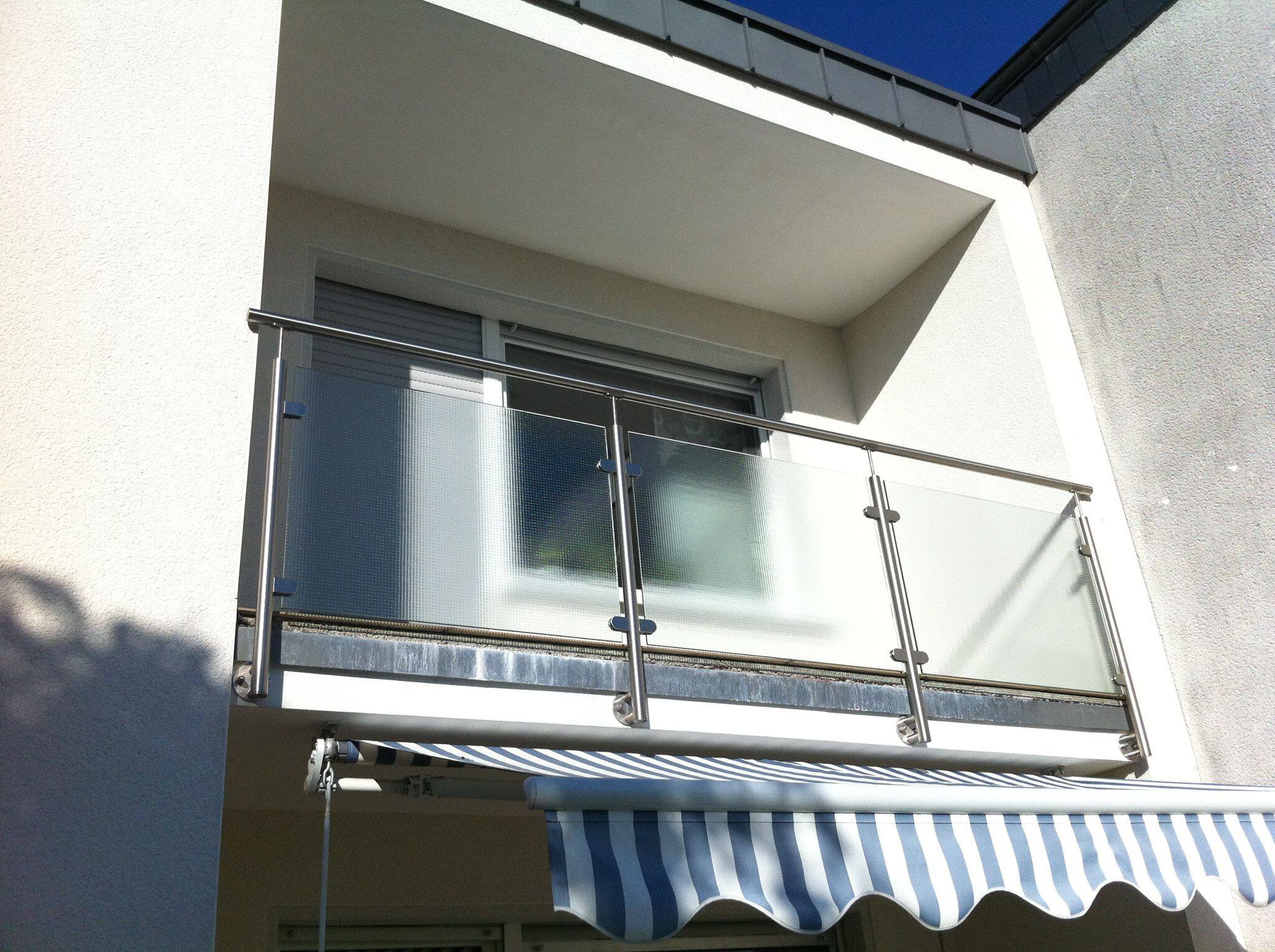

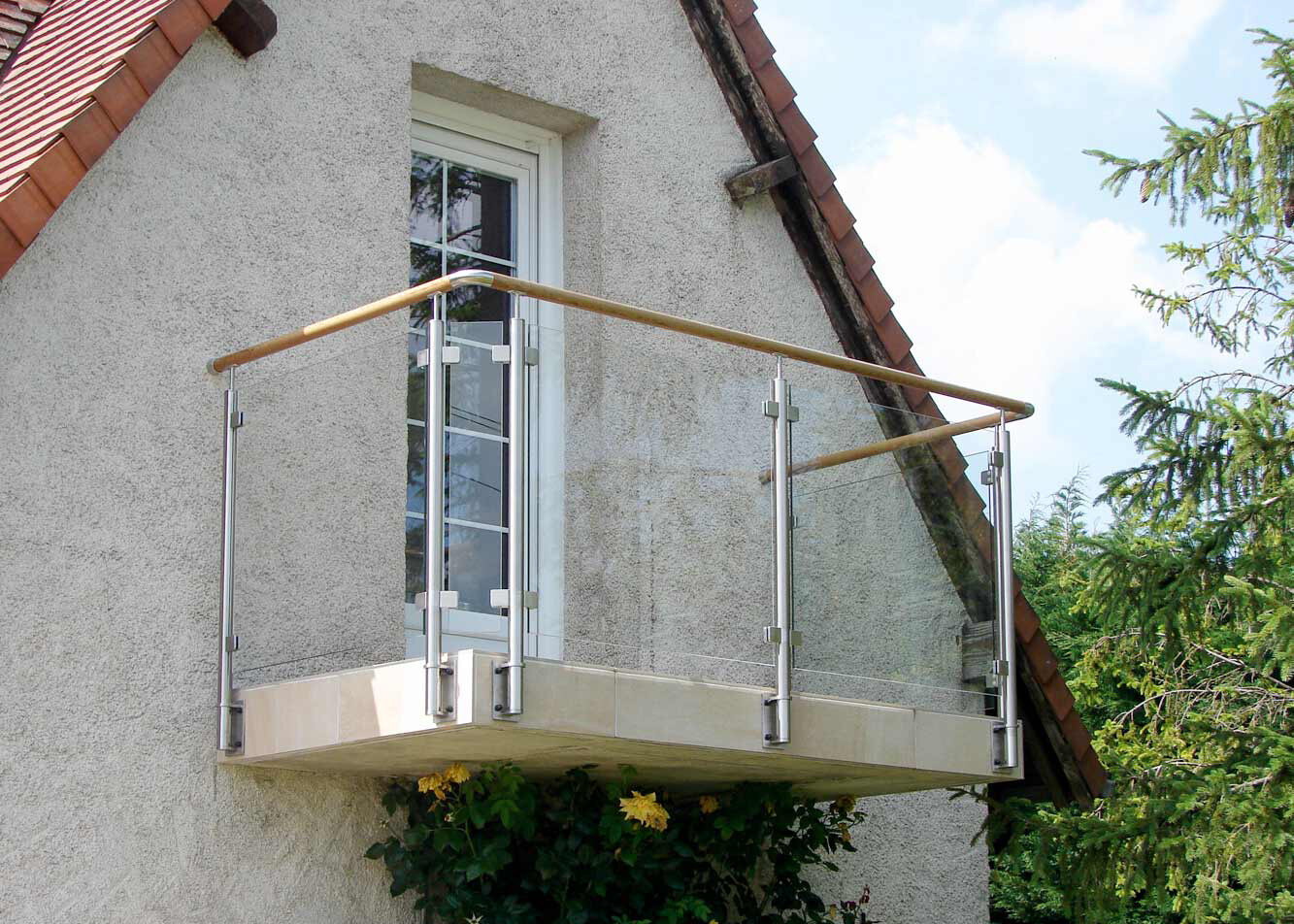

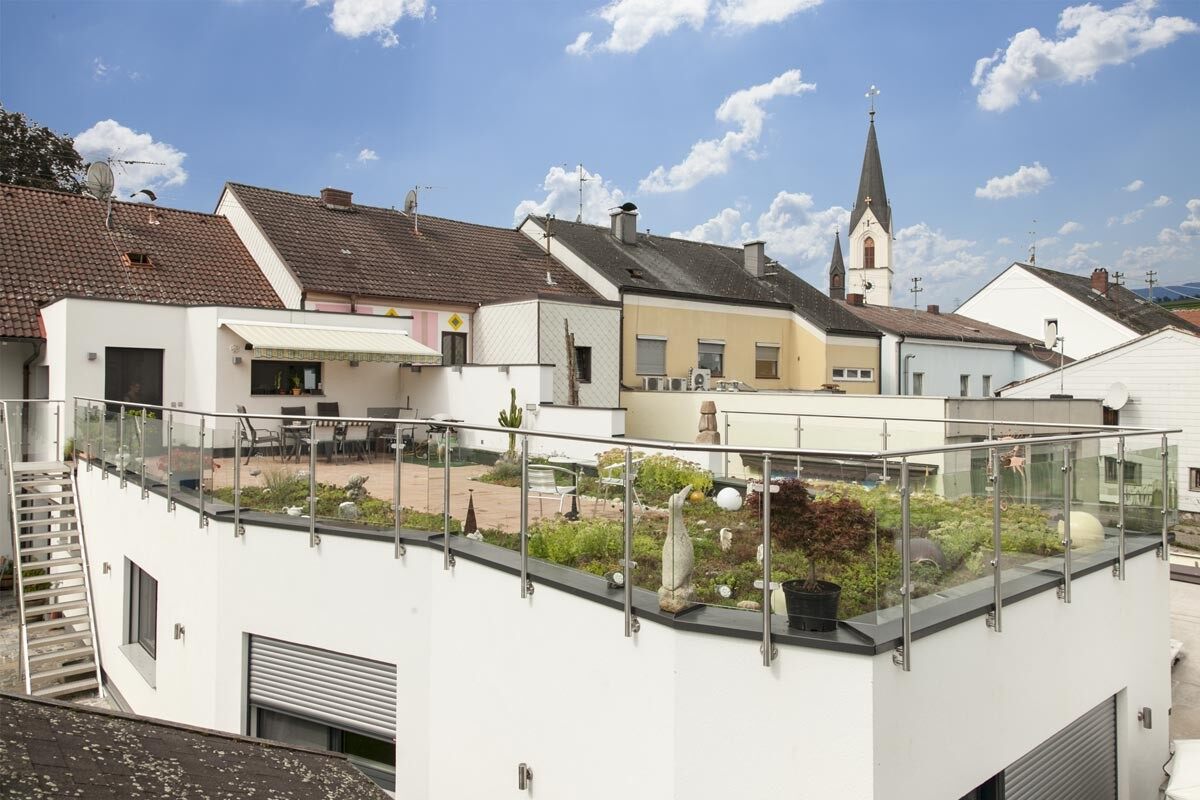

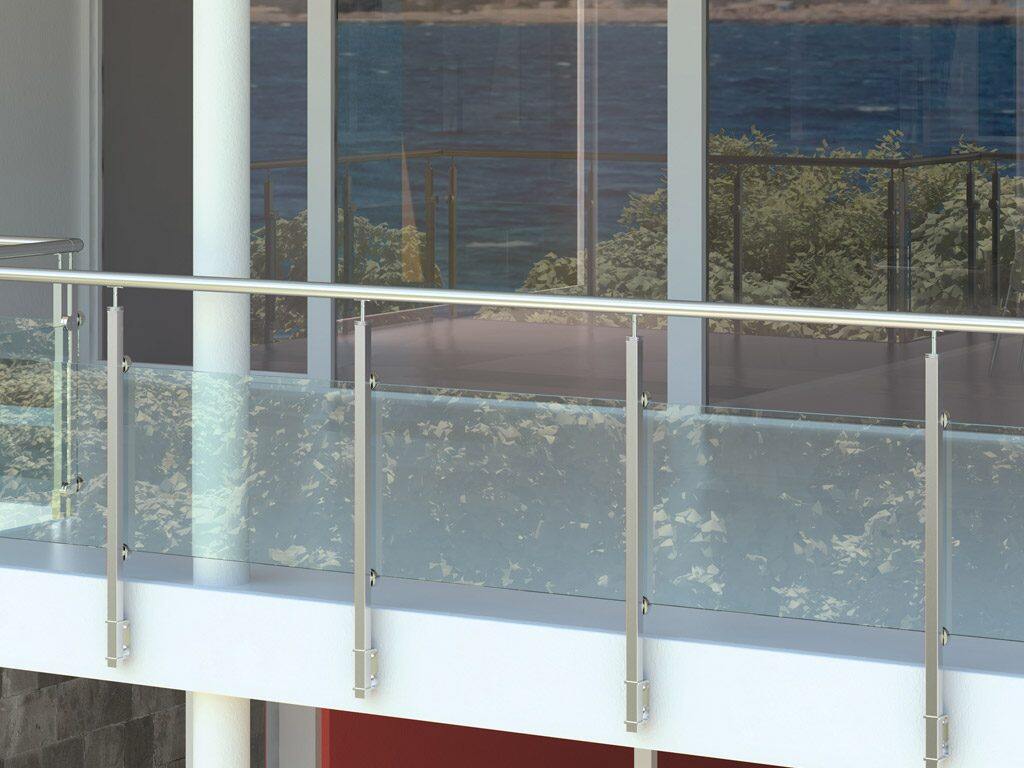

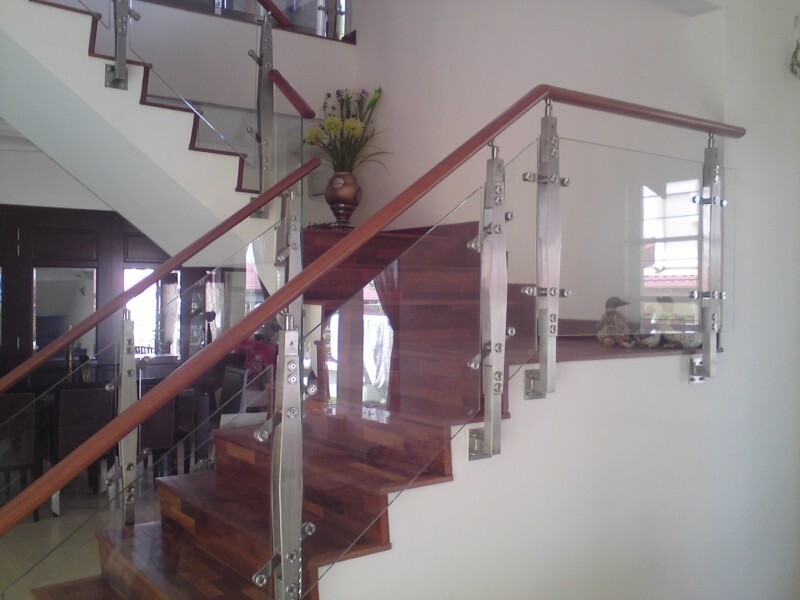

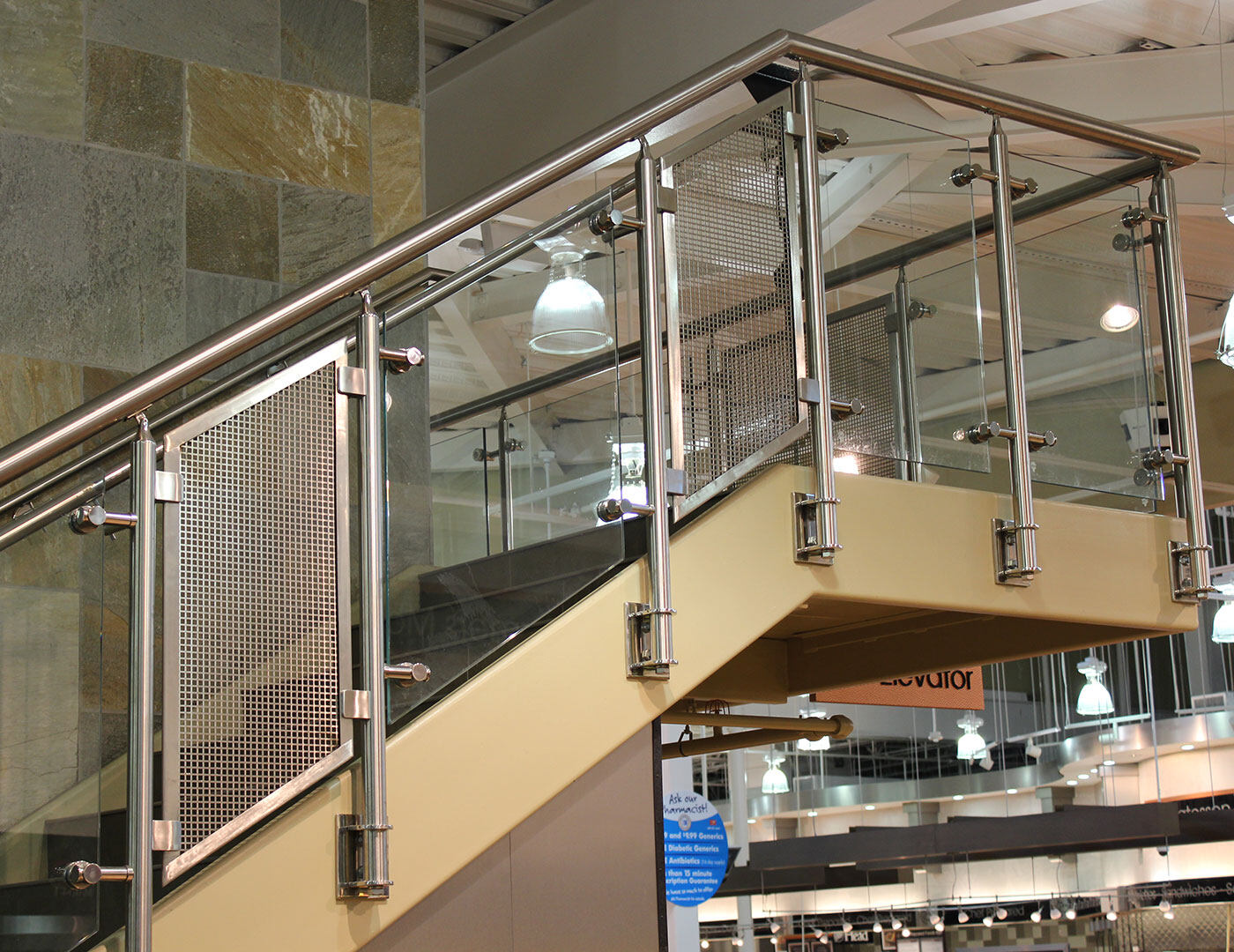

Outdoor Glass Balustrade Systems Projects:



outdoor glass balustrade systems



glass balustrade



indoor glass balustrade







Product Name
Side Mount Glass Railing Post Deck Design Balcony Stainless Steel Tempered Glass Railing Balustrade
Model
LONGTAI
Materials
Stainless Steel 304 or 316
Color
Non or Coated
Finish
Mirror or Satin
Height
1150mm,1050mm,950mm,850mm or Customized
Body Square Size
40x40mm,50x50mm
Body Round Size
38.1mm,42.4mm,50.8mm
Glass Clamp
Solid Rod Type
Glass Thickness
8mm,10mm,12mm
Top Pipe
50.8mm or other size
Anchor Bolt
Including
MOQ
30 Meters
Application
Stair/Balcony/Railing/Terrace/Handrail
OEM/ODM
Acceptable
