SS Rod Railing

Pipe Stainless Steel Railing Rod Balustrade

New design stainless steel top mount rod railing balcony balustrade

Inquiry

What is Stainless Steel Rod Balustrade?

Answer: The stainless steel rod balustrade is designed to use the horizontal rob as the guarding to prevent passersby from falling down. The rob balustrade railing system is widely used in commercial places and residential. The stainless steel rod railing could be an alternative to the stainless steel cable railing.



What Are the Advantages Of The Stainless Steel Rod Balustrade?

Answer: High Durability, smooth texture, and Ease to clean are the benefits of the stainless steel rod railing. First, because of the stable chemical features of the stainless steel, the stainless steel rod balustrade has high wear resistance. No matter what level of friction, no scratch is on the surface of the stainless steel. Second, when you use your hands to feel the balustrade, you could find that it is smooth and even. Third, the even surface of the stainless steel balusters also makes the cleaning easier. If there is dust on the surface, you could gently wipe it away with a towel.

Paramater of Stainless Steel Rod Balustrade



General product specifications:

1. Height: 850-1200mm (the specific height can be manufactured according to the actual needs of customers)
Railing height (generally between 900mm-1200mm, specific specifications can be set according to usage)
Height of domestic indoor railing: 900mm-1000mm
Height of domestic outdoor railing: 1000mm-1100mm
Height of foreign indoor railing: 1000mm-1100mm
Height of foreign outdoor railing: 1100mm-1200mm



Available configurations:







2. Handrail:

PVC, solid wood, acrylic, stainless steel shaped pipe, stainless steel pipe (round pipe, square pipe, flat pipe...)
The shape and size of the armrest can be customized according to the actual needs of customers...
Such as: round tube: φ31.8mm, φ38.1mm, φ42.4mm, φ50.8mm, φ63.5mm...
Square tube: 30x30mm, 38x38mm, 40x40mm, 50x50mm, 60x60mm...
Oval tube: 40x80mm, 30x60mm...
Thickness: 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.3mm, 2.5mm. ...
Steel plate: width 40mm, 50mm, 60mm, 70mm, 100mm...
Steel plate thickness: 4mm, 6mm, 8mm, 10mm, 12mm, 16mm, 20mm...
Wood: round: 40mm, 50mm, 60mm, 70mm, horseshoe shape: 50x70mm... can be customized according to customer design requirements







3. Post:

Acrylic column, steel-wood column, stainless steel column (round tube, square tube, flat tube, single steel plate, double steel plate...), carbon steel column, aluminum column
The shape and size of the column can be customized according to the actual needs of customers...
(For example: round tube: φ31.8mm, φ38.1mm, φ42.4mm, φ50.8mm, φ63.5mm...
Square tube: 30x30mm, 38x38mm, 40x40mm, 50x50mm, 60x60mm...
Thickness: 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.3mm, 2.5mm)
Steel plate: width 40mm, 50mm, 60mm, 70mm, 100mm...
Steel plate thickness: 4mm, 6mm, 8mm, 10mm, 12mm, 16mm, 20mm...
Optional wood: beech, rubber wood, ash, eucalyptus, poplar, walnut tree, yellow pineapple, oak, camphor, birch, birch, fir, catalpa, camphor, walnut, elm... .







4. Infill Panel:

(1) Tempered glass: thickness: 4mm, 5mm, 6mm, 8mm, 10mm, 12mm...
(2) The thickness of flat toughened glass is 4, 5, 6, 8, 10, 12, 15, 19mm...;
(3) The thickness of curved tempered glass is 5, 6, 8mm...
(4) Laminated glass: thickness: total glass thickness 4--50mm; PVB film thickness: 0.38---2.28 mm
(5) Surface technology: transparent, gray, blue, coating...
(6) solid rod: Φ12mm, Φ10mm, Φ8mm...hollow tube: 13x25mm, 10x20mm, 15x30mm...







5. Surface Finished:

Sparkling silver/champagne silver/sand black/nickel-plated/baked varnish/mirror/finish/sand polish/matt/brushed/chrome-plated/galvanized/baked varnish/sprayed....



Applications of Stainless Steel Rod Railing

Widely used in various banks, stations, hospitals, post offices, theaters, airports, airports, subways, shopping malls and supermarkets, exhibition centers, hotels, clubs, clubs, commercial buildings, real estate development companies, decoration companies, construction projects, modern large hotels, Restaurants, stadiums, office buildings, private villas, railings...











Stainless Steel Railing Supply - LongTai

Established in 2007, LongTai is one of the excellent stainless steel railing manufacturers in China, specializing in developing, manufacturing, and selling staircases railing, glass railing, stainless steel baluster, related accessories, and other metalwork. Relying on the latest production equipment and competent technical personnel, we offer customized service for you to produce the aluminum railing and stainless steel railing which meet your needs.

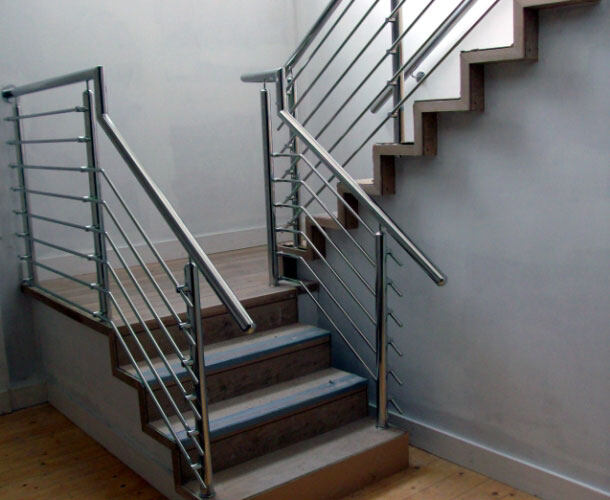

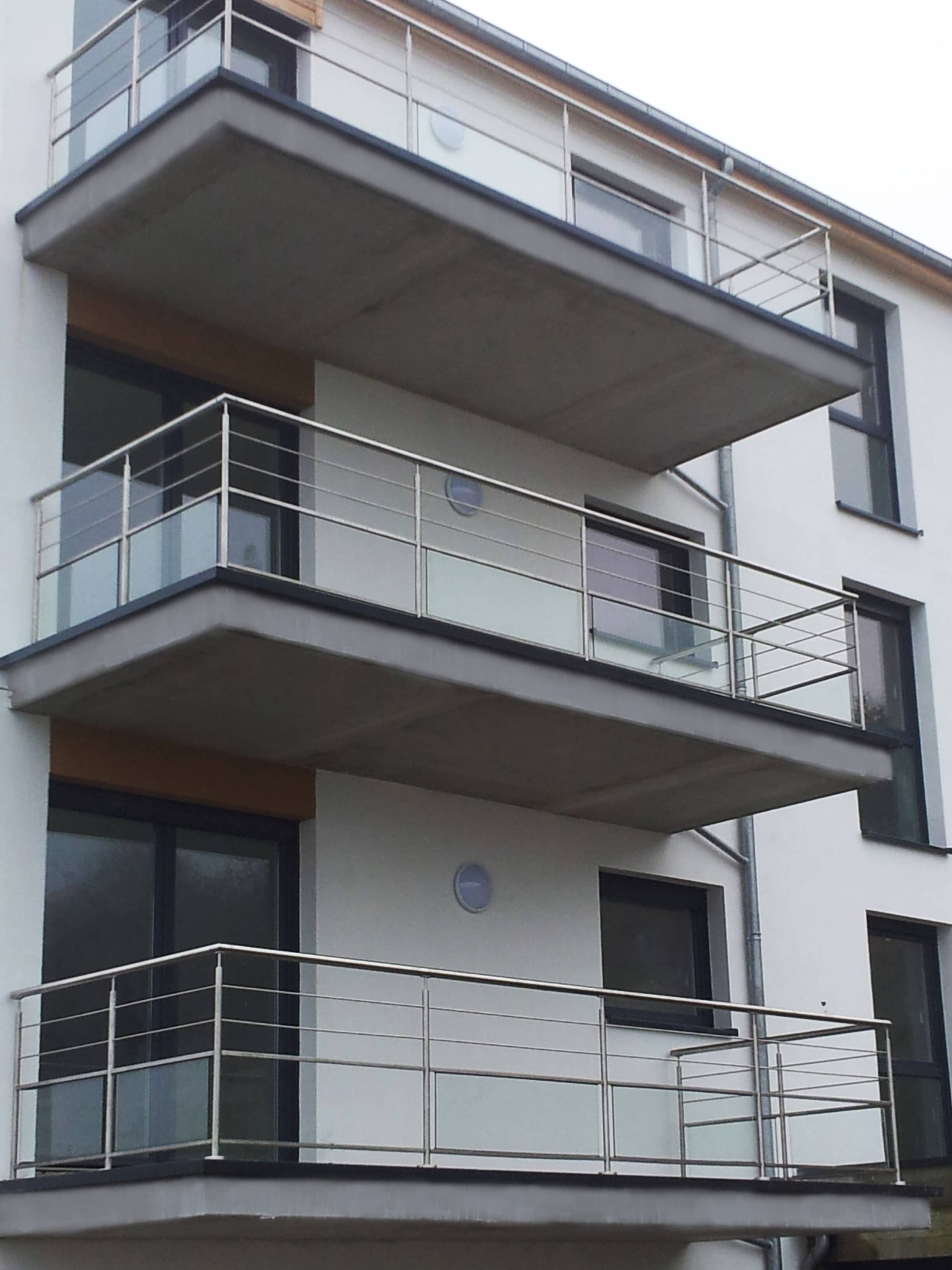

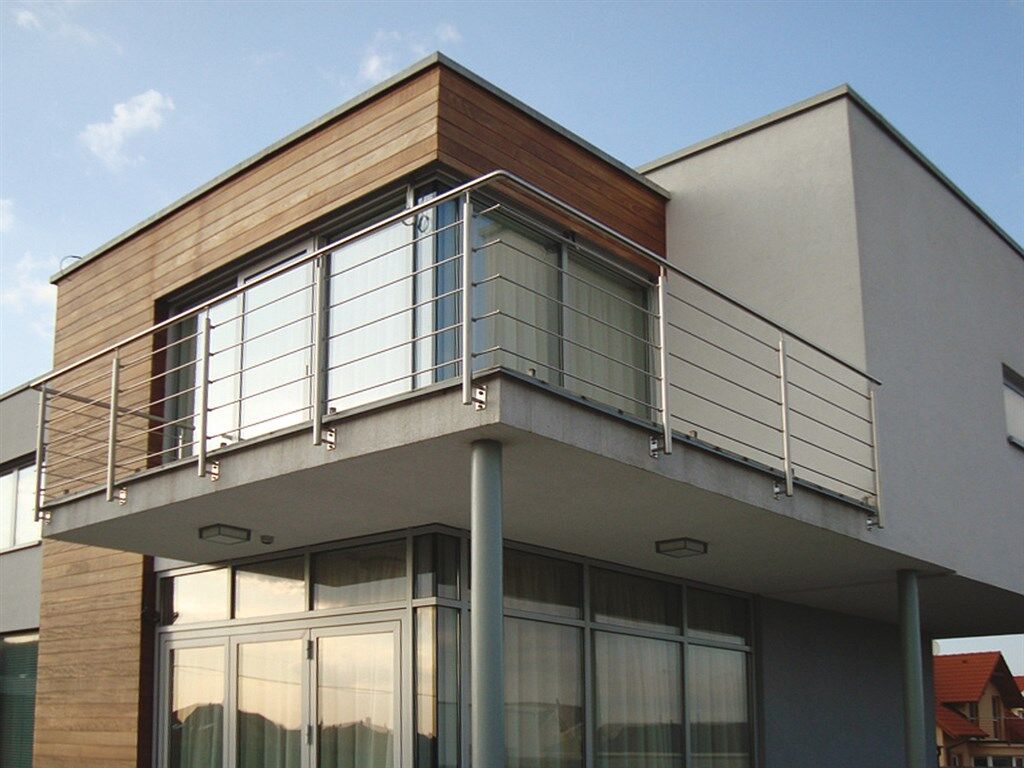

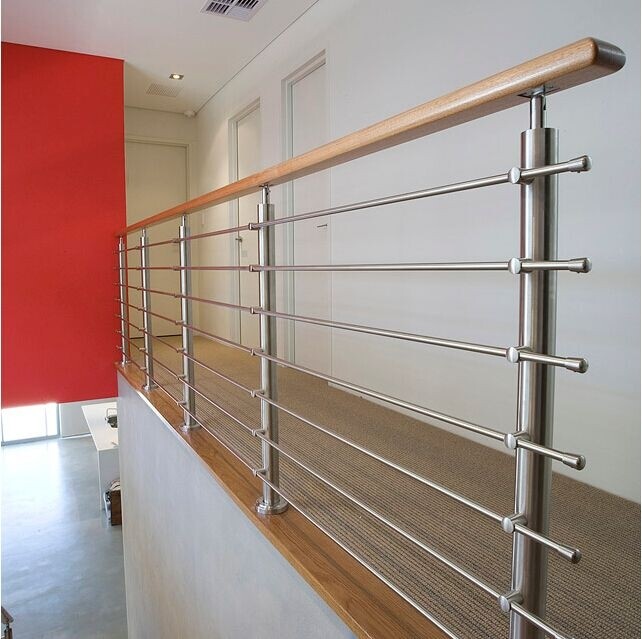

stainless steel rod railing

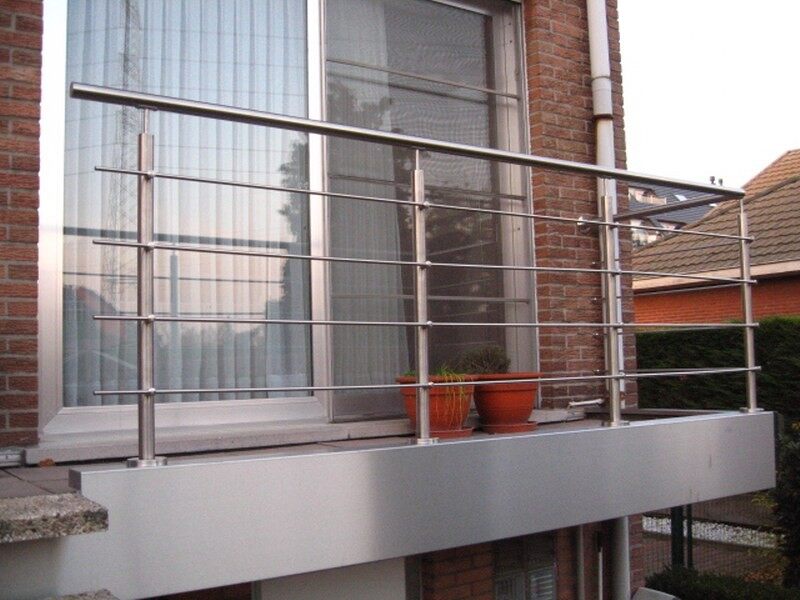

stainless steel rod railing

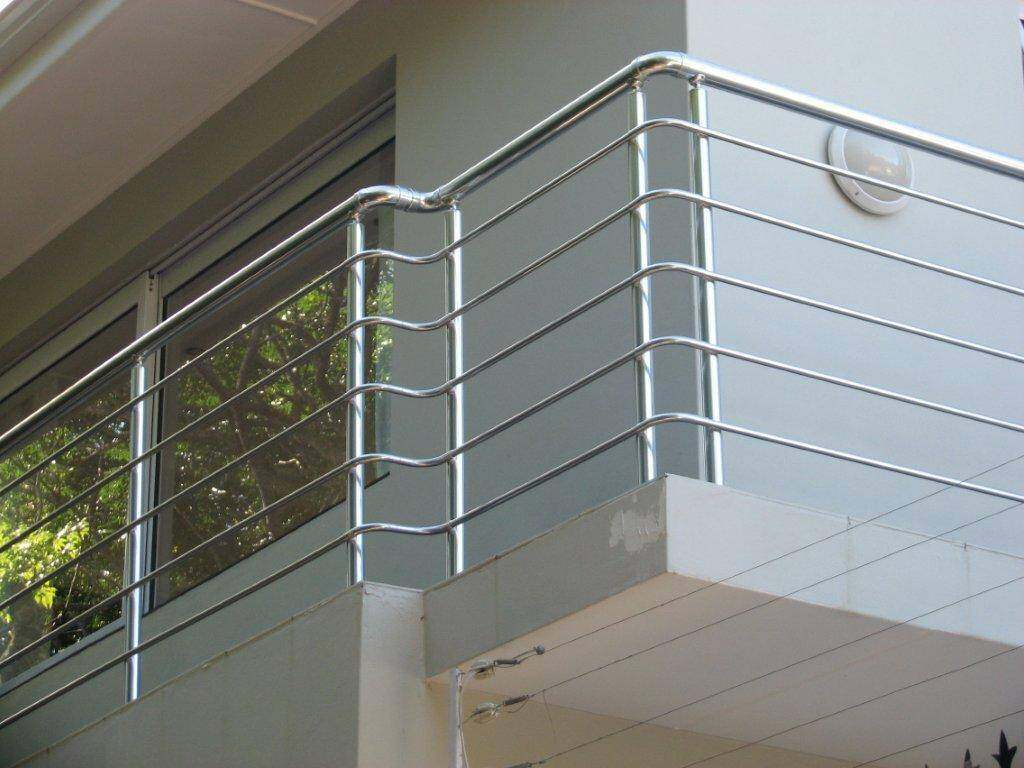

stainless steel rod railing
