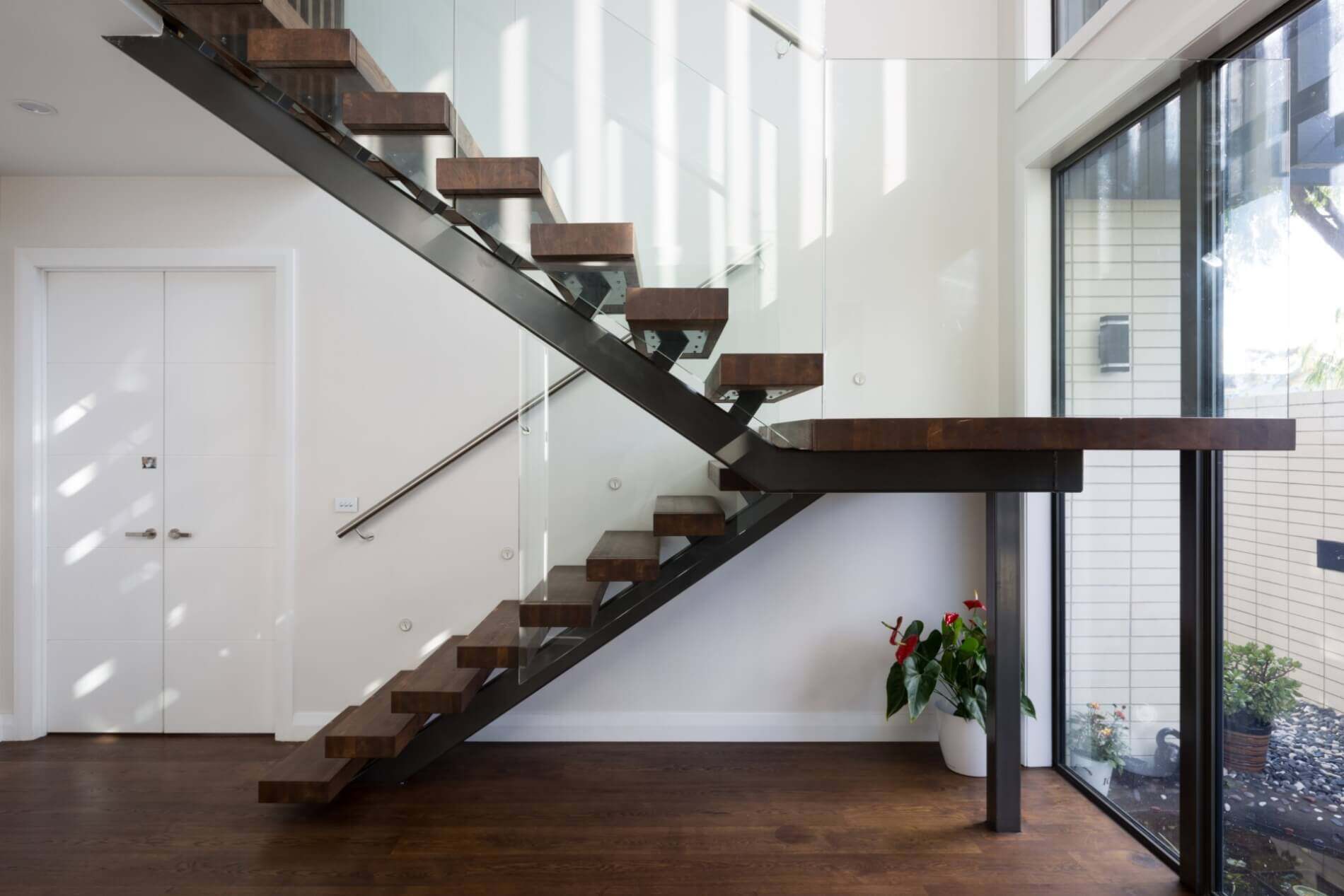

Solid Wood Tread Steel Staircase

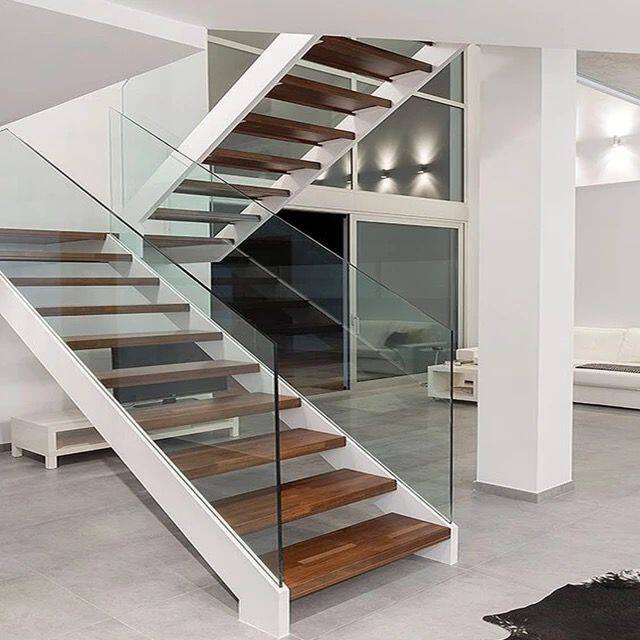

Solid wood straight staircase

Modern Indoor Small Space Stairs Stainless Steel Wooden Straight Staircase

Inquiry

Overall specification
General product specifications:



Keel/Girder:

(1) Steel keel: 8--30mm A3 steel/carbon steel/sus304/sus316...
(2) Sleeve keel: Φ108x3.0mm /Φ108x4.0mm/Φ100x80x4.0mm/Φ100x80x6.0mm A3 steel/carbon steel/sus304/sus316...
(3) Solid wood keel: thickness: 38---70mm



Pedal:

1. Solid wood pedal:
Thickness: 19-38mm...
Optional wood: European beech, beech, rubber wood, ash, northeastern elm, eucalyptus, camphor, basswood, birch, colored wood, teak, beech, cherry wood, red sandalwood, cypress, yew, red pine, Oak wood, yellow pineapple, walnut tree, Schima superba, rosewood, rosewood, neem, toon, wild jujube...
2. Tempered glass pedal:
(1) Tempered glass: thickness: 19--38mm...
(2) Laminated glass: thickness: total glass thickness 4--50mm; PVB film thickness: 0.38---2.28 mm
3. Acrylic: Thickness: 19---50mm... The color can be selected by the customer...



Handrail: stainless steel (round tube, flat tube, special-shaped tube,...), solid wood (round, horseshoe-shaped)...PVC



Column/Stair Column: Steel and wood column, stainless steel veneer column, stainless steel double plate column, round tube column, flat tube column...

 Railing:
1. Wire drawing rod (Φ8, Φ10, Φ12, Φ15, Φ25...),
2. Curved glass:
(1) Tempered glass: thickness: 4mm, 5mm, 6mm, 8mm, 10mm, 12mm...
(2) The thickness of flat toughened glass is 4, 5, 6, 8, 10, 12, 15, 19mm...;
(3) The thickness of curved tempered glass is 5, 6, 8mm...
(4) Laminated glass: thickness: total glass thickness 4--50mm; PVB film thickness: 0.38---2.28 mm
(5) Processing methods: hot bending, frosting, etched flowers...



Painting:

Sparkling silver/champagne silver/sand black/nickel-plated/painted/mirror/finish/sand/matt/brushed/chrome-plated/galvanized/painted/sprayed.... Various styles, specific accessories and processes can be customized according to customers Demand order.





staircase supply

staircase supply

staircase design

staircase design

staircase manufacturers

staircase manufacturers





Material:
1. Beam:
stainless steel / carbon steel
2. Tread:
laminated glass / solid wood
3. Handrail:
stainless steel / carbon steel / solid wood / PVC
4. Baluster:
stainless steel / carbon steel / aluminum
5. Rod:
stainless steel / carbon steel / aluminum




Component & Size (mm)
1. Beam:
Dia 114mm*6mm thickness inside support post; dia 120mm*6mm outside support post

2. Tread thickness:
30 - 38mm for solid wood tread
10+1.52+10mm or 12+1.52+12mm for glass tread;
3. Handrail:
dia=50.8mm
4. Baluster:
dia=50.8mm or 38mm
5.Glass:
10 or 12mm thickness



Finish:
1. Stainless steel:
mirror / satin
2. Carbon steel:
hot dip galvanizing / powder coating / painting
3. Aluminum:
powder coating / galvanized / oxidize
4. Solid wood:
painting
5. Glass:
clear



Package:
1. Beam:
woven bag

2. Tread:
plywood package for glass tread;
carton or plywood package for wood tread;
3. Handrail:
woven bag
4. Balutser:
carton package
5. Glass:
plywood package or solid wood package



Installation:
1. DIY products just need screw and bolt to fix on the jobsite and we will finish all of welding work in our factory
2. Detailed installation instruction is available;
3. We also made video installation guide for reference;
4. We will here to support you all the time if needed;
Application:
residential, commercial, public project, interior & outside



Advantage:
1. Varies of styles
2. we will follow your construction code during the design stage
3. Before shipment, we will also install first to make sure it’s perfect;
4. No MOQ, even one stair is welcoming;
5. We will offer complete accessories and tools for your order, even screw is also included;
