Solid Wood Tread Steel Staircase

Steel Straight Steel Mono Stringer Staircase

Mono Stringer Prefab Wood Staircase For House Project Modern Steel Straight Steel Mono Stringer Staircase

Inquiry

Overall specification
General product specifications:







Keel/Girder:

(1) Steel keel: 8--30mm A3 steel/carbon steel/sus304/sus316...
(2) Sleeve keel: Φ108x3.0mm /Φ108x4.0mm/Φ100x80x4.0mm/Φ100x80x6.0mm A3 steel/carbon steel/sus304/sus316...
(3) Solid wood keel: thickness: 38---70mm







Pedal:

1. Solid wood pedal:
Thickness: 19-38mm...
Optional wood: European beech, beech, rubber wood, ash, northeastern elm, eucalyptus, camphor, basswood, birch, colored wood, teak, beech, cherry wood, red sandalwood, cypress, yew, red pine, Oak wood, yellow pineapple, walnut tree, Schima superba, rosewood, rosewood, neem, toon, wild jujube...
2. Tempered glass pedal:
(1) Tempered glass: thickness: 19--38mm...
(2) Laminated glass: thickness: total glass thickness 4--50mm; PVB film thickness: 0.38---2.28 mm
3. Acrylic: Thickness: 19---50mm... The color can be selected by the customer...







Handrail: stainless steel (round tube, flat tube, special-shaped tube,...), solid wood (round, horseshoe-shaped)...PVC



Column/Stair Column: Steel and wood column, stainless steel veneer column, stainless steel double plate column, round tube column, flat tube column...

 Railing:
1. Wire drawing rod (Φ8, Φ10, Φ12, Φ15, Φ25...),
2. Curved glass:
(1) Tempered glass: thickness: 4mm, 5mm, 6mm, 8mm, 10mm, 12mm...
(2) The thickness of flat toughened glass is 4, 5, 6, 8, 10, 12, 15, 19mm...;
(3) The thickness of curved tempered glass is 5, 6, 8mm...
(4) Laminated glass: thickness: total glass thickness 4--50mm; PVB film thickness: 0.38---2.28 mm
(5) Processing methods: hot bending, frosting, etched flowers...







Painting:

Sparkling silver/champagne silver/sand black/nickel-plated/painted/mirror/finish/sand/matt/brushed/chrome-plated/galvanized/painted/sprayed.... Various styles, specific accessories and processes can be customized according to customers Demand order.

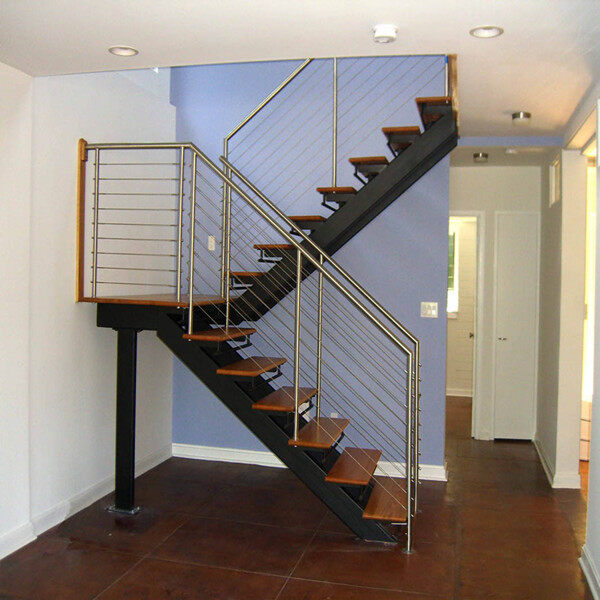

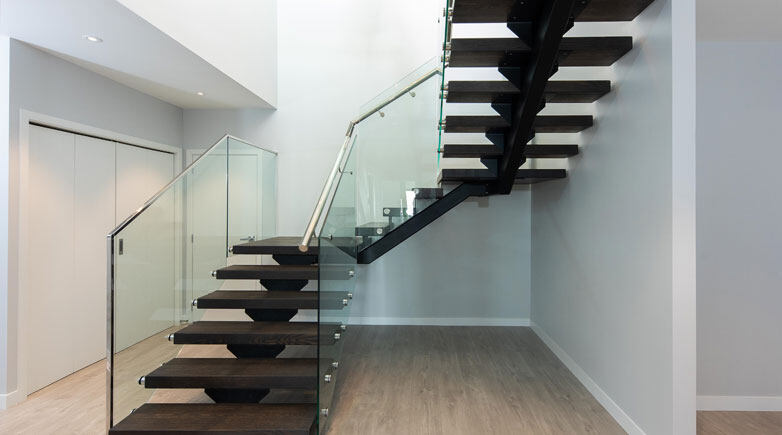

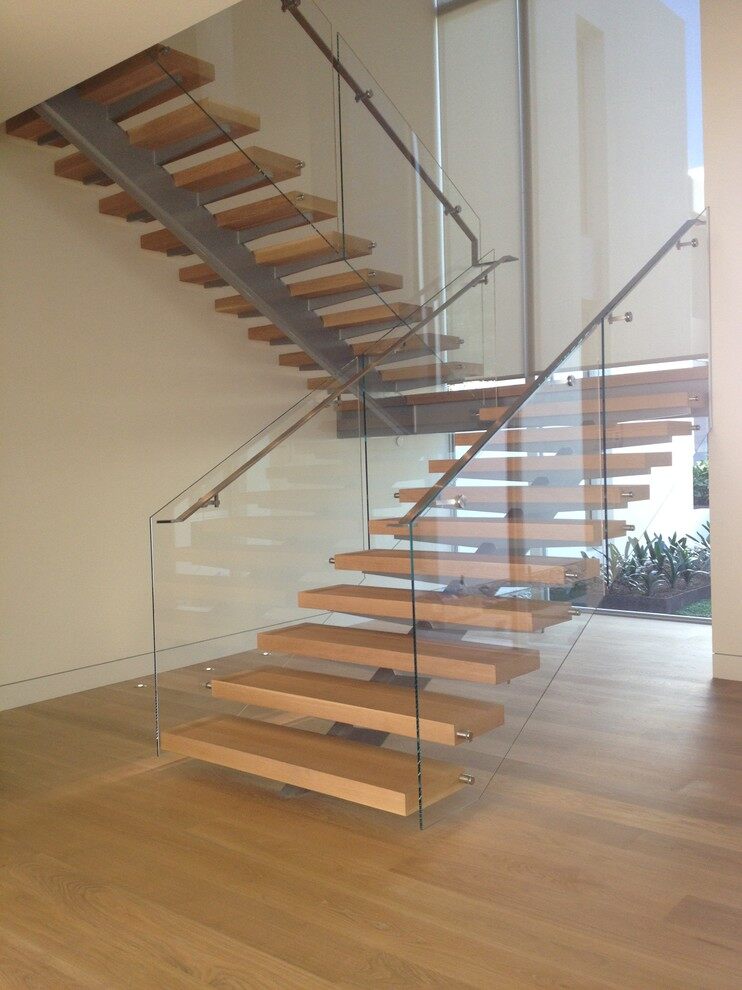

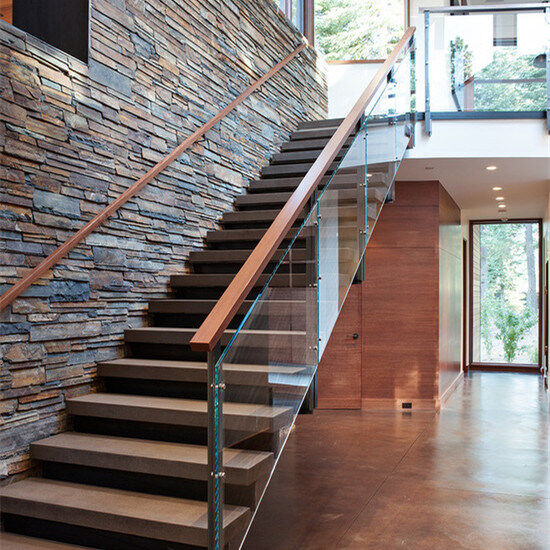

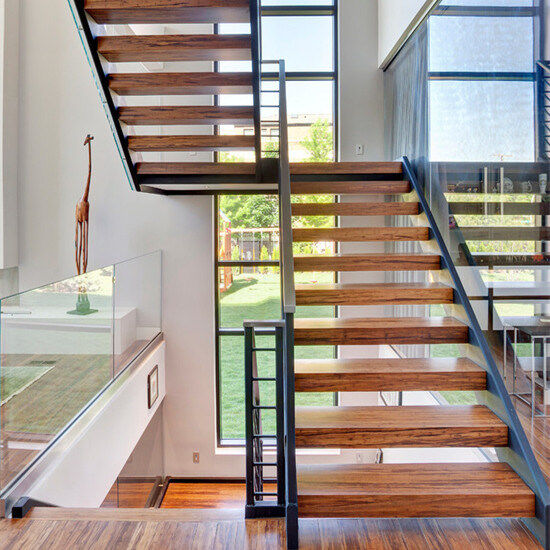

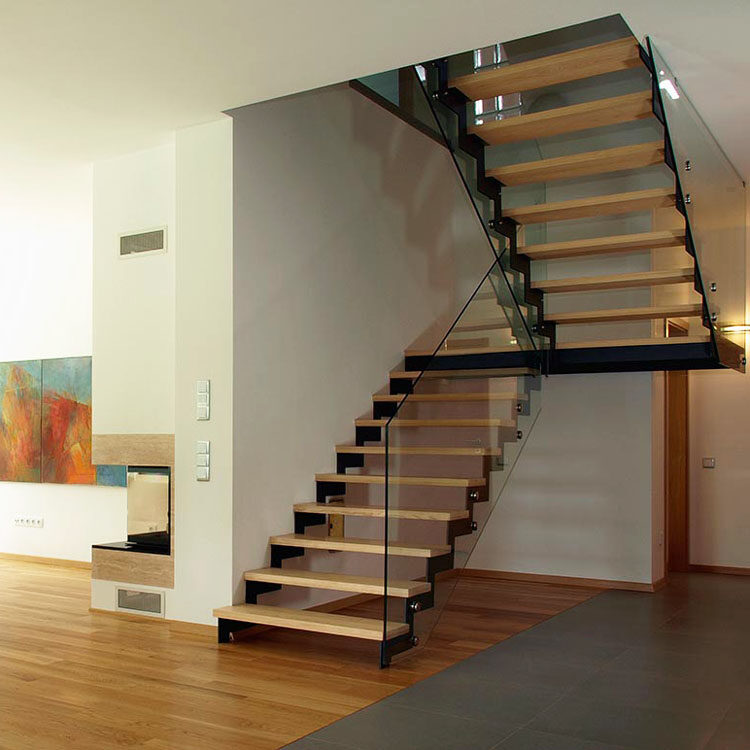

stringer stairs staircase

stringer stairs staircase



Specification


Staircase Size
1. Floor to floor height:
customized as your job site
2. Width:
850 - 1800mm/Customized
*Dimensions will vary according to measurements of stairs.



Material
1. Beam:
stainless steel / carbon steel
2. Tread:
laminated glass / solid wood
3. Handrail:
stainless steel / carbon steel / solid wood / PVC
4. Baluster:
stainless steel / carbon steel / aluminum
5. Rod:
stainless steel / carbon steel / aluminum



Component & Size
(mm)
1. Beam:
100*200*6mm center beam/300*10/12mm side beam
300*(5+5)mm u channel beam/ 108*4mm center post
2. Tread thickness:
10+1.52+10mm or 12+1.52+12mm for glass tread;customized
30 - 38mm for solid wood tread
3. Handrail:
dia=50.8mm or square=50*50mm
4. Baluster:
dia=50.8mm / 38mm or square=50*50mm
5. Rod/Wire:
dia=4/6/8mm
6. Glass:
10mm/12mm/15mm tempered glass or 6+1.52+6mm/8+1.52+8mm laminated glass



Finish
1. Stainless steel:
mirror / satin
2. Carbon steel:
hot dip galvanizing / powder coating / painting
3. Aluminum:
powder coating / galvanized / oxidize
4. Solid wood:
painting
5. Glass:
round edge & polished edge
Note
We still have more designs of the staircase
