U Channel Aluminum Glass Railing

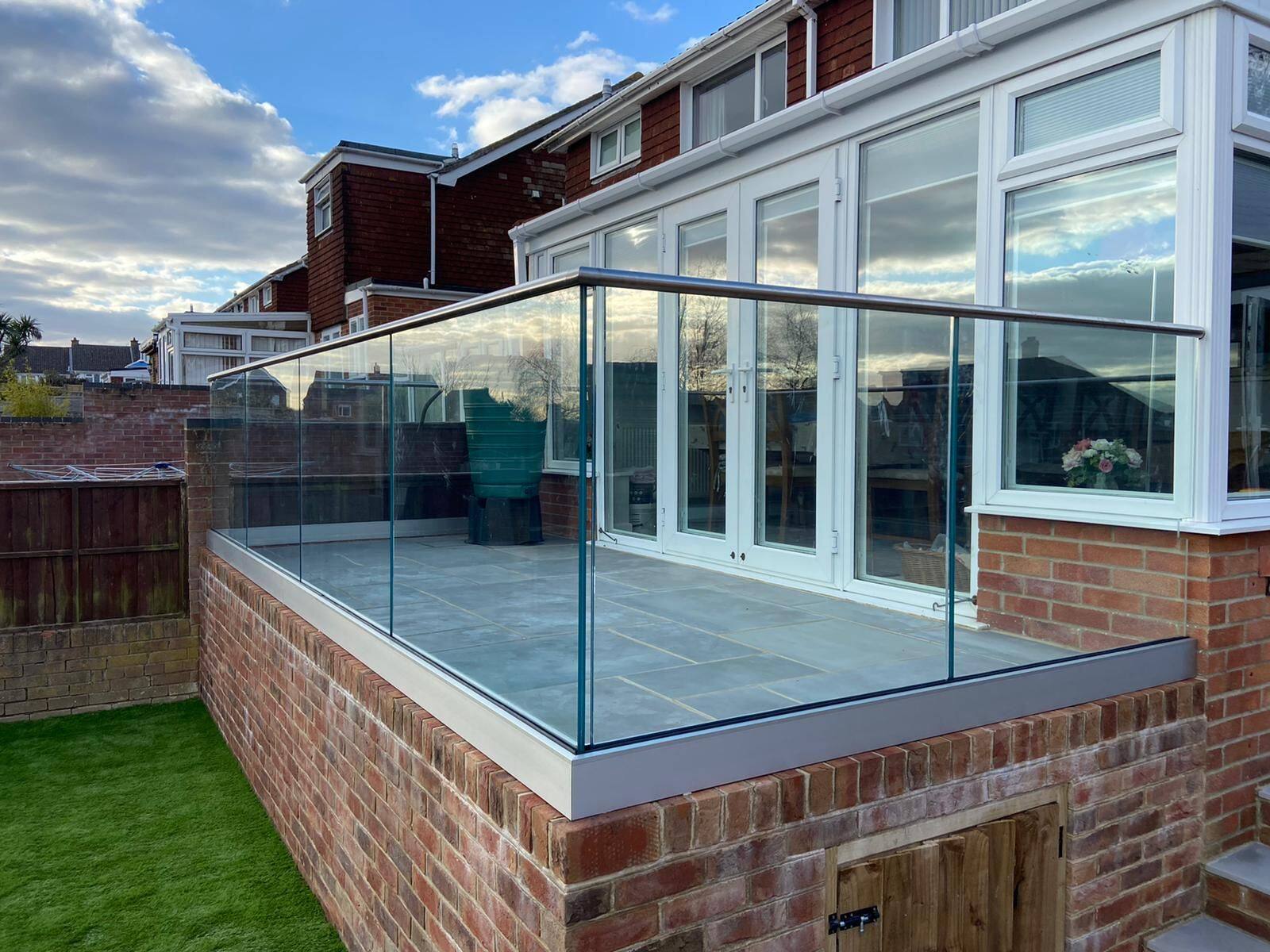

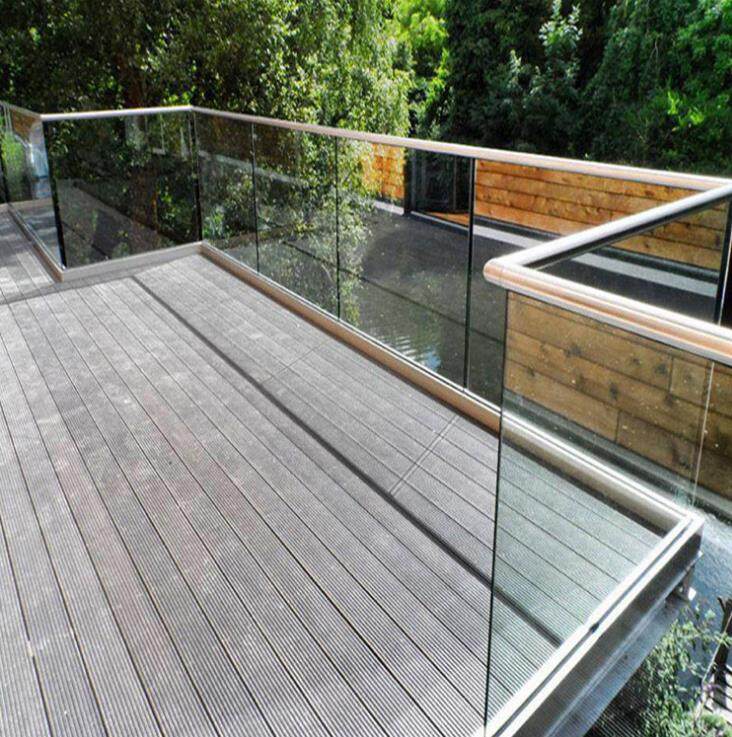

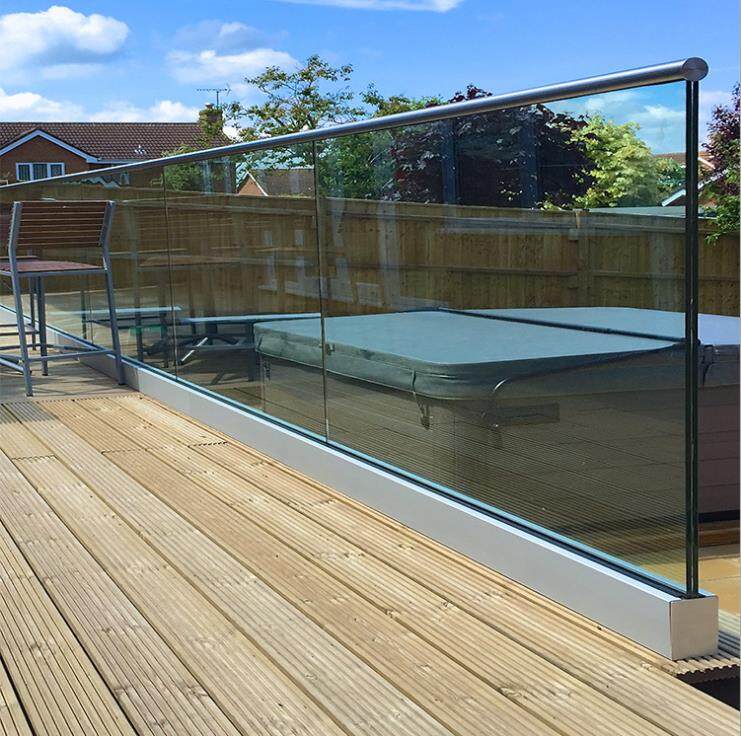

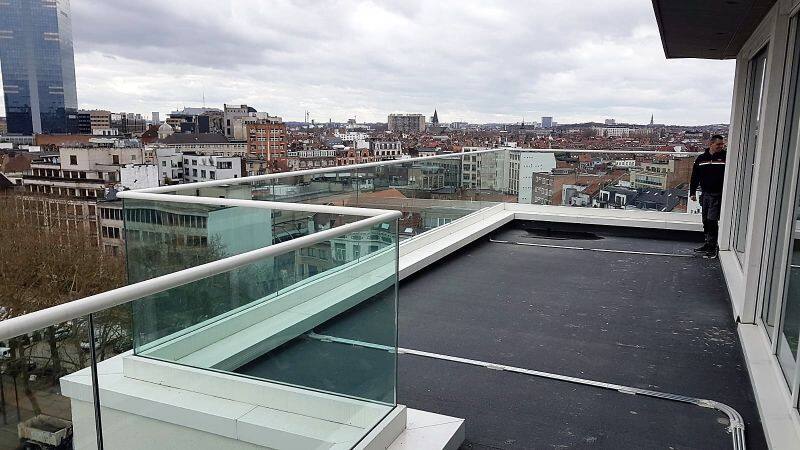

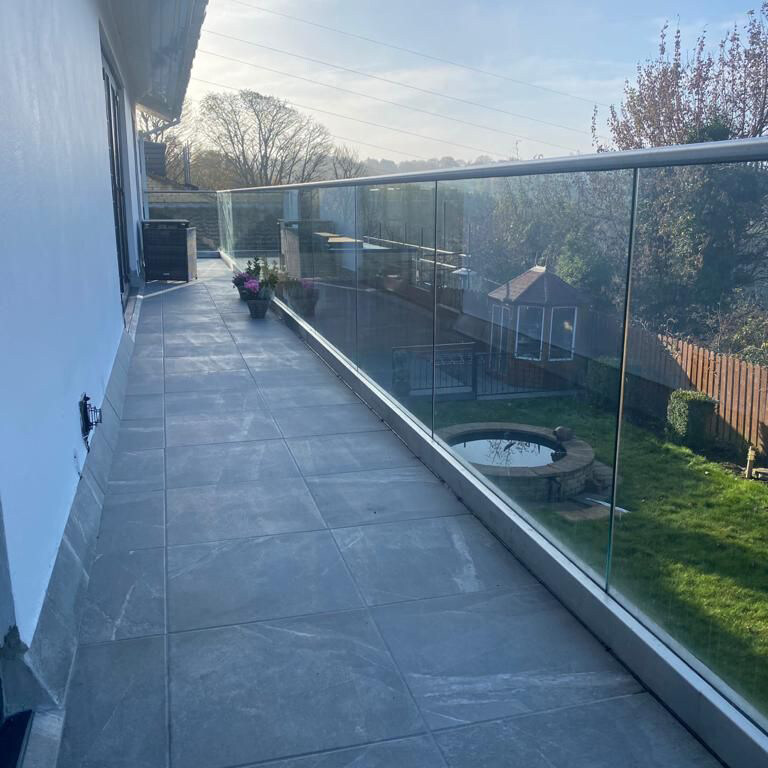

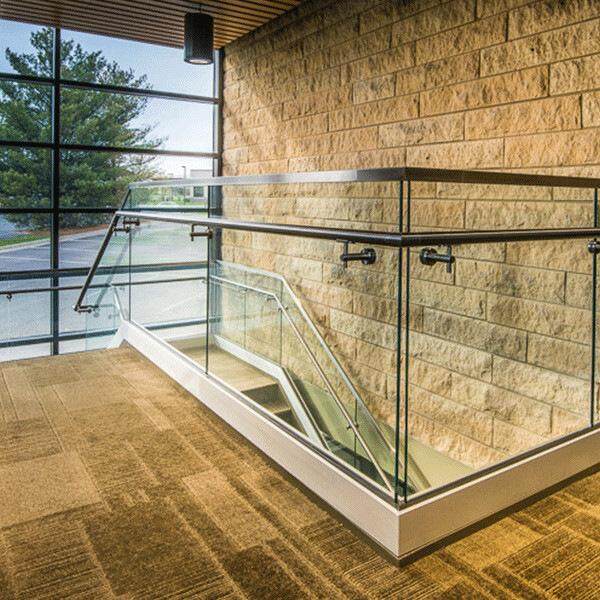

Frameless U Channel Aluminum Glass Railing

Design Concept

This kind of railing uses aluminum bottom channel shoe to hold the glass, instead of standing post.

In this way, it brings not only simple and modern appearance but also strong and durable quality.

There are no posts between glass, which makes the maximum area of glass and brings better view.

Inquiry



glass balustrade channel system

glass balustrade channel system

glass balustrade channel system

u channel glass railing



Product Name

Frameless Railing Balcony U Channel Aluminum Base Shoe Glass Railing

Model

LTU-02

Total Height

950 / 1050 / 1150mm or Customized

Materials

Base Shoe

Aluminum 6063

Slot Pipe Handrail

SS304

SS316

Finish

Slot Pipe Handrail

1.Mirror #600 #800

2.Satin #180 #240 #320 #400

3.Powder Coated

4.Electroplated

Base Channel

1. Anodized Silver- Outdoor Standard

2. Powder Coated (black , white , etc.) - Outdoor Standard

3. Aluminum mill finish
& SS304/316 cover (Mirror,Satin,Color electroplate)

Size

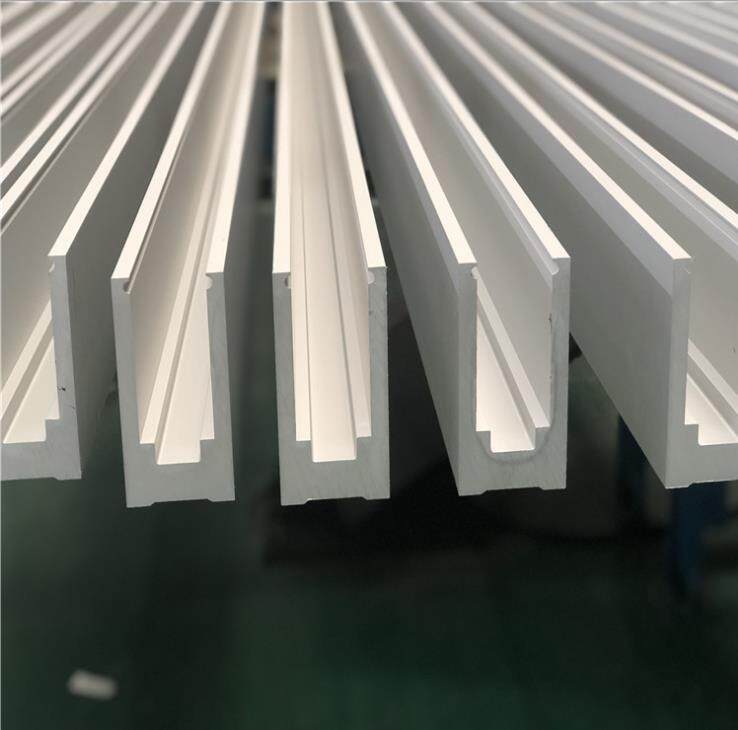

Base Channel

Cross section : 102x62mm

Length : 3 / 4 / 5.8 / 6 meters

Slot Pipe Handrail

SS304/316 -  Round Shape:

25.4 / 31.8 / 38.1 / 42.4 / 48.3 / 50.8 / 60.3 / 63.5mm

SS304/316 -  Rectangle Shape:

25x21 / 40x30 / 40x40 / 50x50 / 50x25 / 60x40 / 75x45 / 80x80 / 100x30mm

Base Holes

Dia.12mm / 3nos per meter

Glass Thickness

Super White Low Iron glass 10 / 12 / 16mm

Accessories

Top rail rubber

Full set tighting plastic for glass

Anchor bolt-M8x80

Edge sealing rubber

Side end cap

Package

Top Handrail

1.Each pipe is packed into one PP bag,then few pieces in one nylon bag

2.or Blister packaging for each pipe

Base Channel

1.Each channel covered by EPE film,two pieces in one nylon bag

1.or Blister packaging for each channel

Glass

Fumigation wooden crate

Advantage

1. Hot Sale. LTU-02 is the most popular model and widely used.

2. Good view. The most minimalist and cleanest design,offering people a wide opean vision.

3. Easy installation. Installation method is easy. Fixing the base channel by bolts,
then inserting the glass to the base channel and tighting glass by the rubber.

4. Fast installation.Installation time is shoter than any railing models. Don't need very difficult skills.

Application

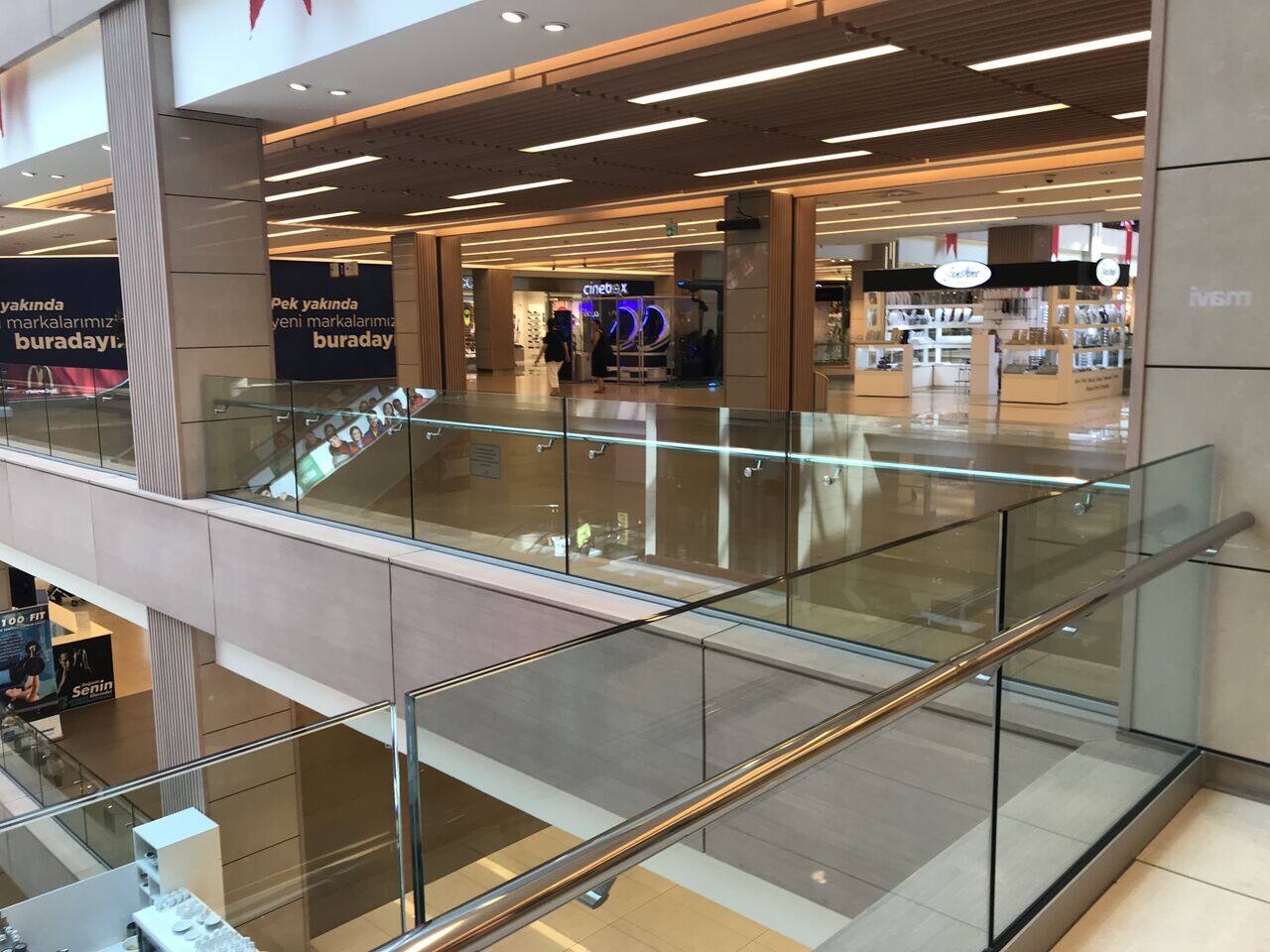

Stair / Balcony / Railing / Terrace / Handrail /Corridor

OEM & ODM

Acceptable

Payment

T/T , L/C At Sight , Western Union , Alibaba

Delivery

Ocean Shipping , Air Shipping;Express Delivery
